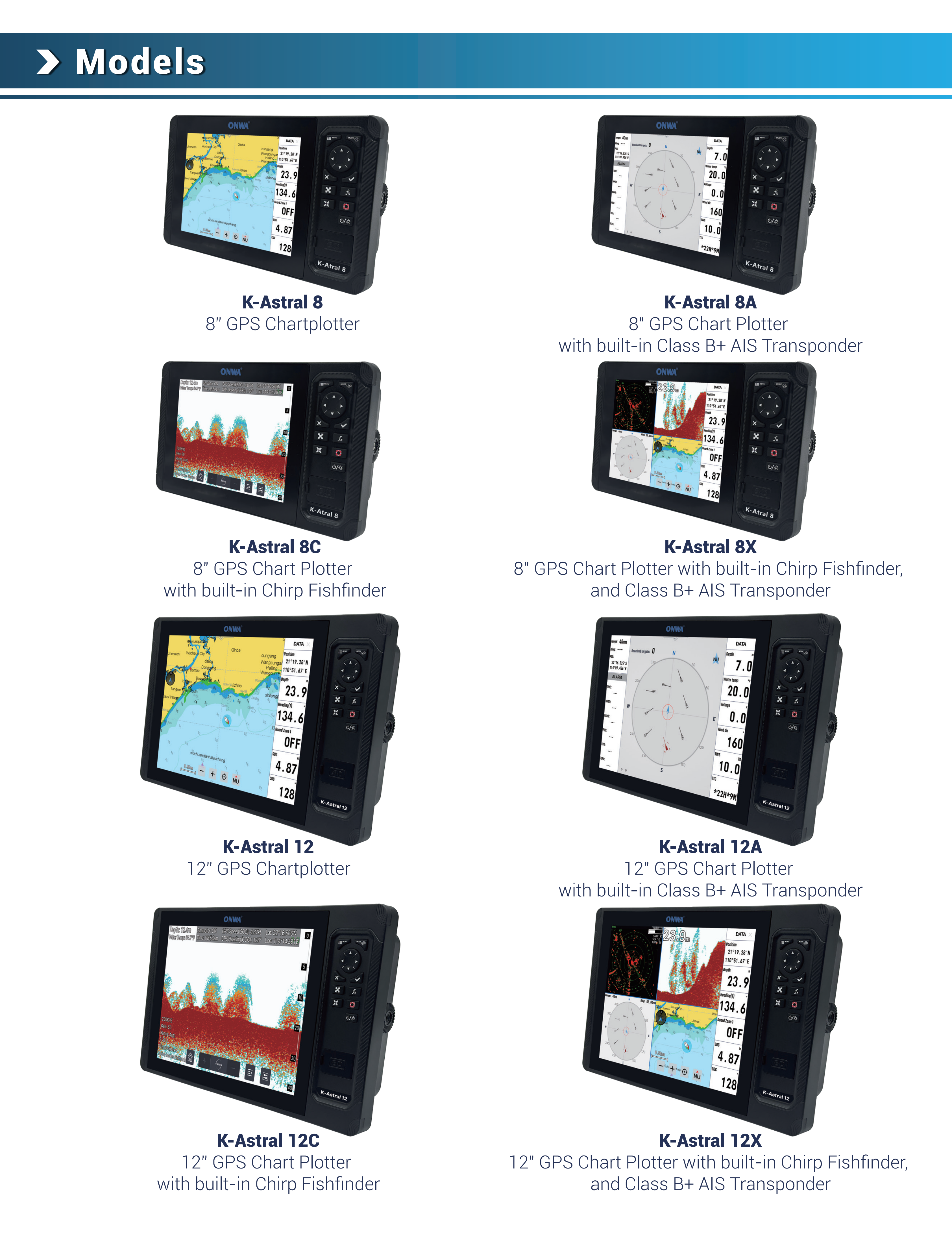

ONWA K-Astral Easy-to-use MFD Chartplotter

8″ and 12″ Full-featured MFD Chartplotter with Highly Responsive Touchscreen and Traditional Keypad
  • Product Description
  • Specification
  • In the Box
  • Manuals & Firmware

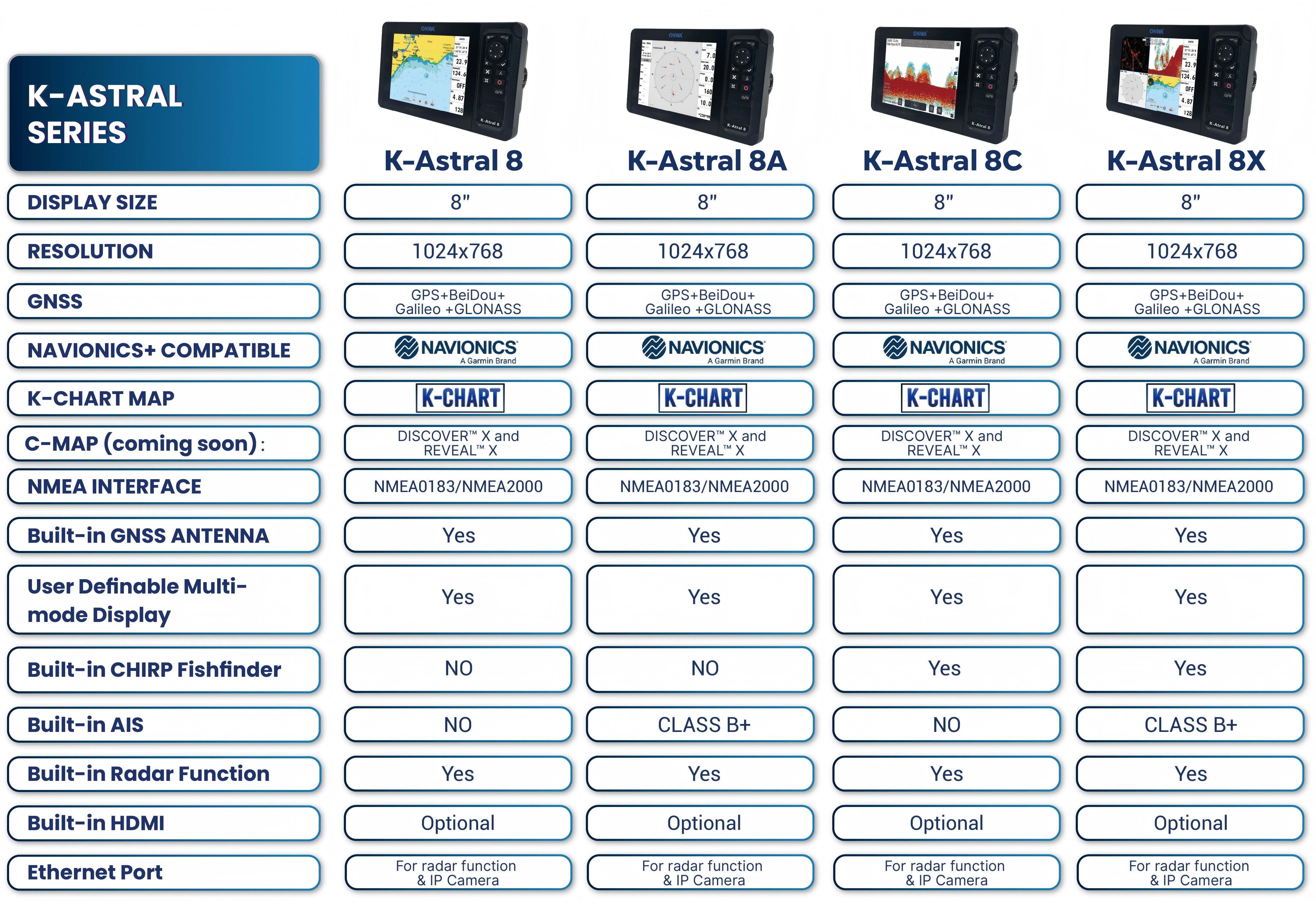

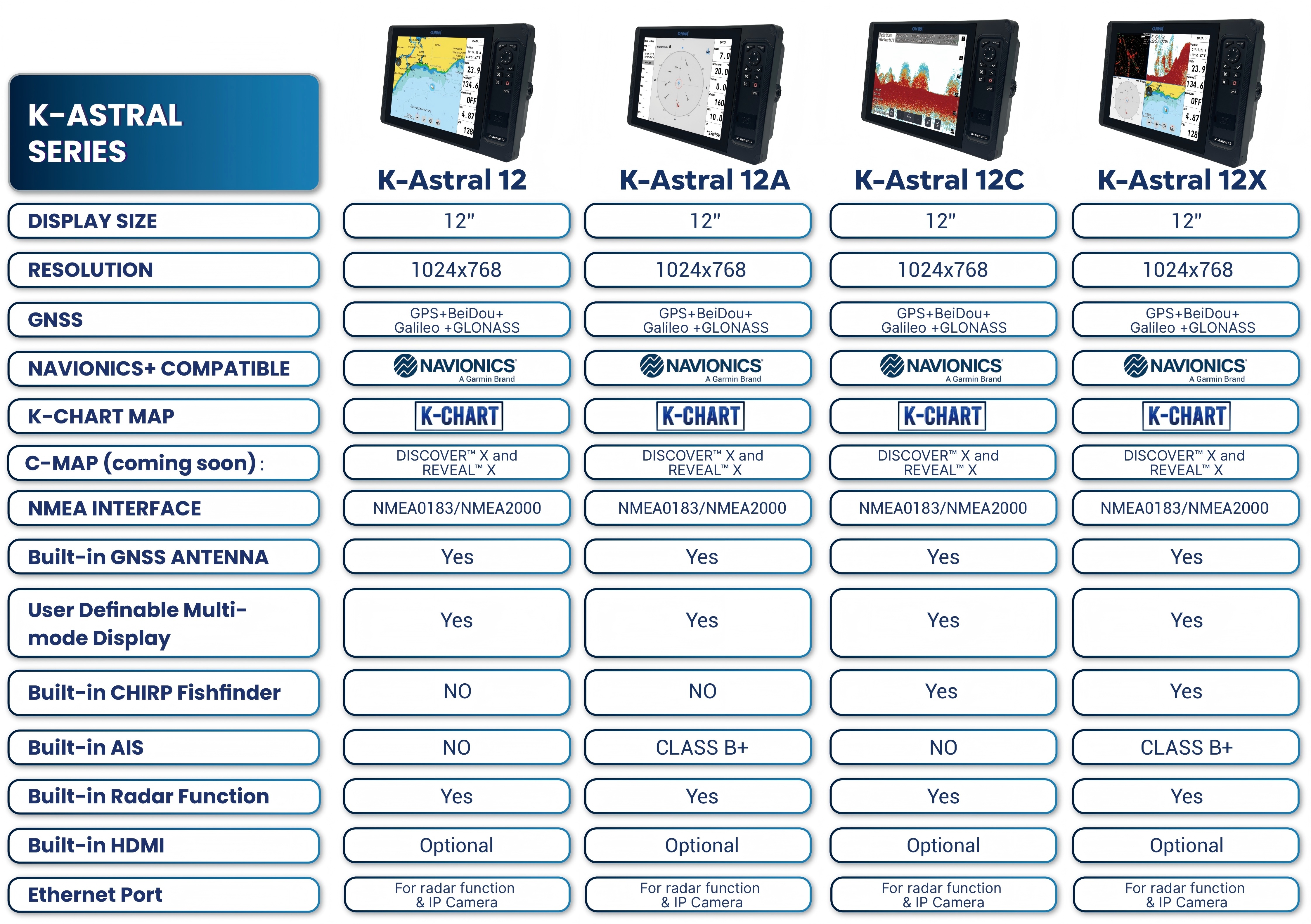

  • Compare All Models

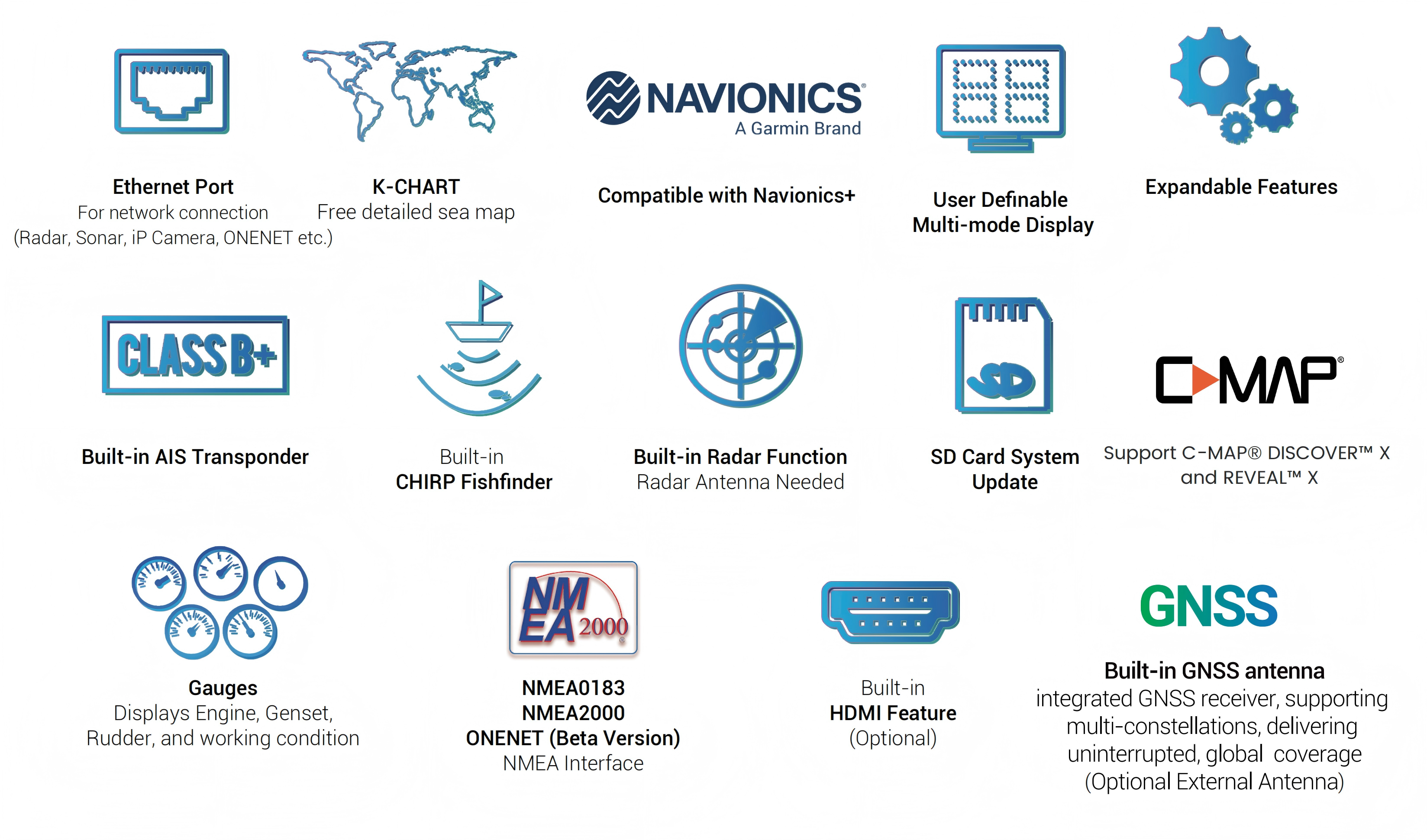

  • Key Features

    • Highly responsive touch control and accidental touch prevention, even under wet conditions
    • An all-in-one & user-friendly chartplotter
    • Next-generation CHIRP fishfinder module
    • High-resolution color LCD (up to 1024 × 768)
    • 1000 cd/m² sunlight-viewable display
    • Built-in Radar Function (Radar antenna is supplied as an option)





  • 1. Chart Functions

    Waypoints

    Up to 12,000 (with symbols or names); 10 most recent displayed

    Routes

    30 routes, up to 170 points per route

    Tracks

    Auto record 21,000 points; 10 track lines (up to 8,000 points each)

    Alarms

    7 types (in development) — off-course, anchor drag, arrival, speed, voltage, Timer, dangerous waypoint

    Palette

    Normal / Night / Day / Paper chart/NOAA

    Projection

    Mercator

    Position Format

    Longitude / Latitude / UTM

    Maps

    Worldwide Basemap

    External Maps

    K-Chart ; Navionics+

    User Data Storage

    Internal memory or SD card

    Recording Interval

    1s–99h / 0.01–9.99 NM

    Chart Scale

    0.002–1000 NM

    2. Power Supply

    Series

    Input Voltage

    Max Power

    Rated Current at 12V

    K-Astral 12

    10.5–31.2 V

    36 W

    2A

    K-Astral 12A

    10.5–31.2 V

    36 W

    3A

    K-Astral 12C

    10.5–31.2 V

    36 W

    3A

    K-Astral 12X

    10.5–31.2 V

    36 W

    3A

    K-Astral 8

    10.5–31.2 V

    33 W

    1.8A

    K-Astral 8A

    10.5–31.2 V

    33 W

    2.8A

    K-Astral 8C

    10.5–31.2 V

    33 W

    2.8A

    K-Astral 8X

    10.5–31.2 V

    33 W

    2.8A

    3. Physical Parameters

    Series

    Dimensions (L×W×H)

    Weight

    Display

    Resolution

    Display Area (W×H)

    K-Astral 8 Series

    276.1×165.8×77.4 mm (10.87×6.53×3.05 in.)

    1.4 kg (3.1 lbs)

    8" TFT LCD

    1024×768

    163.4×122.7 mm (6.43×4.83 in.)

    K-Astral 12 Series

    369.9×234.9×80.42 mm (14.56×9.25×3.17 in.)

    2.5 kg (5.5 lbs)

    12.1" TFT LCD

    1024×768

    262.1×164.2 mm (10.32×6.46 in.)



    Environmental Ratings (8 & 12 Series)

    Water Rating:  Display Unit IPX6

    Operating Temperature:  Display Unit -15°C to +55°C

    4. Satellite Reception Performance

    Parameter

    Specification

    GNSS

    GPS and Beidou K-Astral 8A, K-Astral8X, K-Astral 12A and K-Astral 12X

    Choice of 4 GNSS K-Astral 8, K-Astral 8C, K-Astral 12 and K-Astral 12C

    GPS, Beidou, Galileo, GLONASS

    Channels

    56

    Sensitivity

    Acquisition: -148 dBm; Tracking: -162 dBm

    TTFF (Time to First Fix)

    Cold start avg. 35s;

    Warm start avg. 10s;

     Hot start avg. 1s

    Update Rate

    1 Hz or 10Hz (depends on mode)

    Accuracy

    Position ≤3 m (95%) without S/A;

    Speed 0.1 m/s;

    Time ±100 ns

    Dynamics

    Altitude ≤18,000 m;

    Speed ≤515 m/s;

    Acceleration ≤4g

    Chart Standard

    WGS 84 and others

    Antenna

    Built-in;

    optional KA-09 external antenna

    5. AIS Interface

    Parameter

    Specification

    Baud Rate

    38,400

    Frequency

    161.975 MHz~162.025 MHz

    Access Scheme

    SOTDMA

    Channel Bandwidth

    25KHz

    Modulation

    GMSK

    Data Rate

    9,600 bps

    Number of AIS Transmitter

    1

    Number of AlS Receiver

    2

    AIS Channel 1

    CH 87B(161.975 MHz)

    AIS Channel 2

    CH 88B(162.025 MHz)

    TX Power Output

    >5 Watt (37 dBm±1.5dB)

    RX Sensitivity

    RX Message Format

    >112 dBm @ 20%PER

    AIS Class A and B messages

    Complies with Standards

    ITU-R M.1371-5:2014; IEC 62287-1 Ed. 3:2017

    6. Data Interfaces

    • NMEA2000 network
    • RJ-45 ONWA Marine network
    • 6-pin XDCR (Transducer, K-Astral 8C, 12C, 8Xc,12Xc)
    • VHF (AIS antenna interface, K-Astral 8A, 12A, 8X,12X)
    • BNC (External GNSS antenna, optional)
    • HDMI Output (optional)
    • SD card slot
    • 8-pin Power Port (Power + NMEA 0183 network)
    • WiFi Frequency: 2.4 GHz @ 17 dBm (max)
    • WiFi Speed: up to 433 Mbps
    • IP Camera: Supported

    7. Sonar Specifications

    Frequencies

    AccuVision CHIRP: 50/200 kHz, 83/200 kHz;

    SmartVision CHIRP: 445 kHz

    Transmit Power (RMS)

    AccuVision: 1000 W;

    SmartVision: 500 W

    Depth Range

    50kHz and 83kHz up to 500 meters

    200kHz up to 150 meters

    445kHz up to 100 meters

    Note : subject to the transducer applied.
