ONWA Radome Marine Radar Antenna
- Product Description
- Specification
- In the Box
- Manuals & Firmware
- Compare All Models
-
Comprehensive Awareness
The all-weather ONWA Radome keeps you aware of surrounding traffic, hazards, obstacles, and approaching weather. Navigate confidently in dense fog, rain, and low-visibility conditions. The Radome antenna perfectly blends compact size, lightweight design, and high performance. Choose the Radome antenna when space is limited or rigging restrictions apply. The HD Radome scanner offers reliable radar performance while consuming less power than magnetron-based open array scanners.
Energy Efficiency
The ONWA Radome radar is designed with energy efficiency in mind, consuming significantly less power than traditional magnetron-based open array scanners. This reduced power consumption is particularly beneficial for long voyages, helping to conserve energy and extend the operational range of your vessel.
Robust and Reliable Design
The ONWA Radome are built to endure the harshest marine environments. Their sturdy construction ensures durability and long-lasting performance, while their weather-resistant housings protect the sensitive internal components from the elements.
Easy Installation

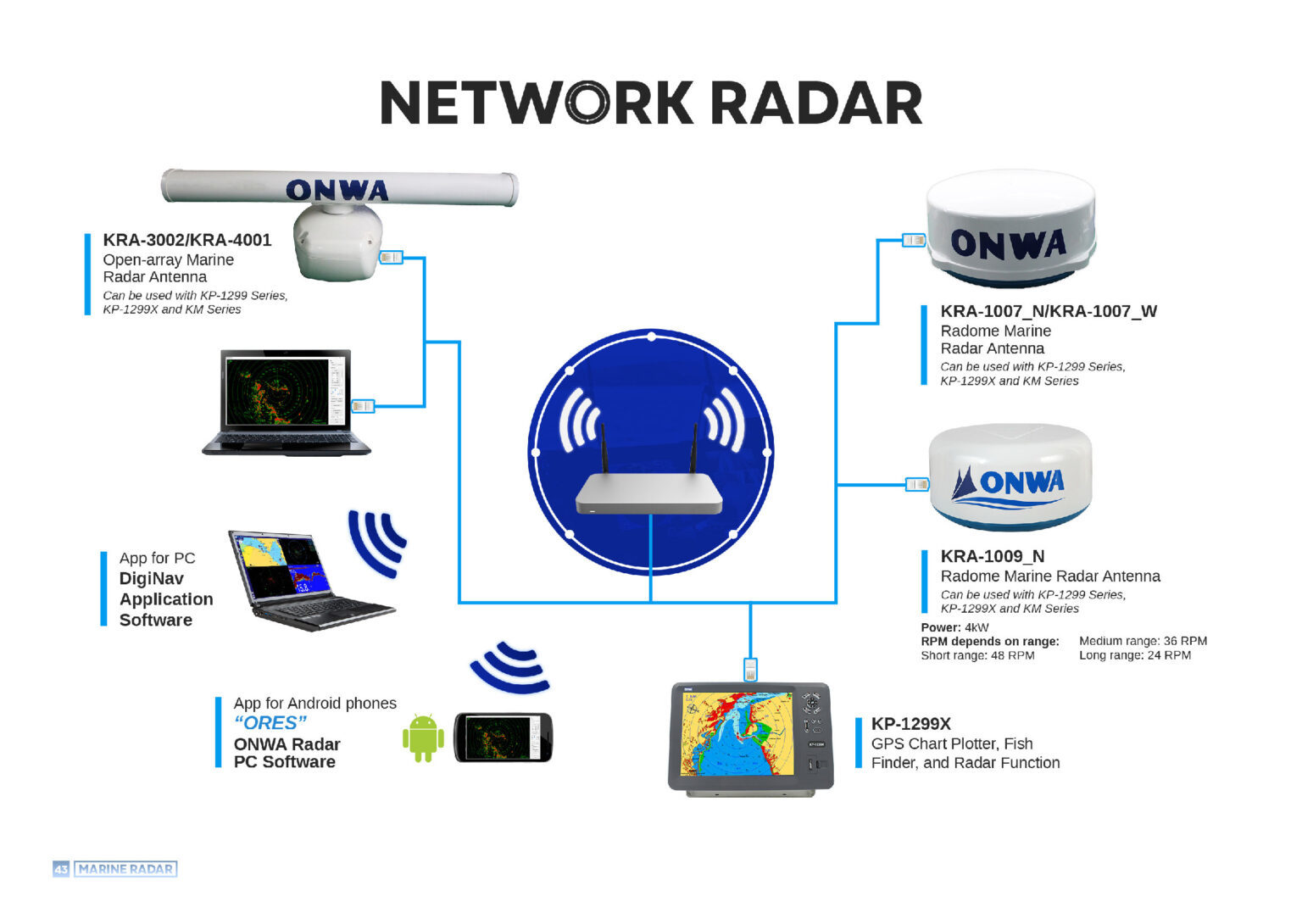

Designed for easy installation, the ONWA HD Radome radar can be seamlessly integrated with your existing navigation systems.
It can be connected to our dedicated radar display and our KM series multi-functional chartplotters, providing versatile and comprehensive navigation support.
Radar Overlay on Charts

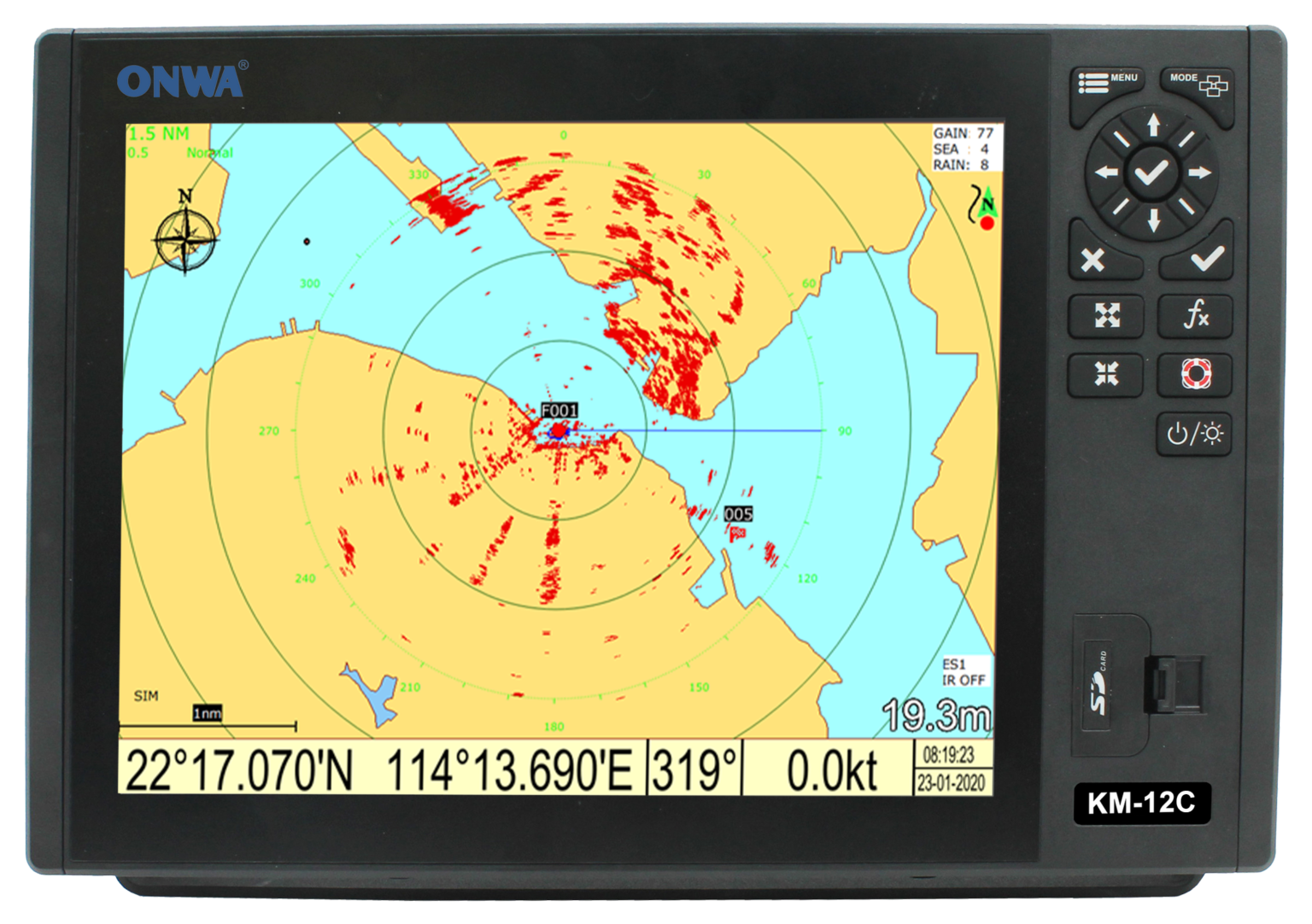

The KM Series allows radar data to be overlaid on nautical charts, combining visual navigation aids with real-time radar information. This feature enhances situational awareness by showing radar echoes on the chart, making it easier to correlate radar returns with charted objects.

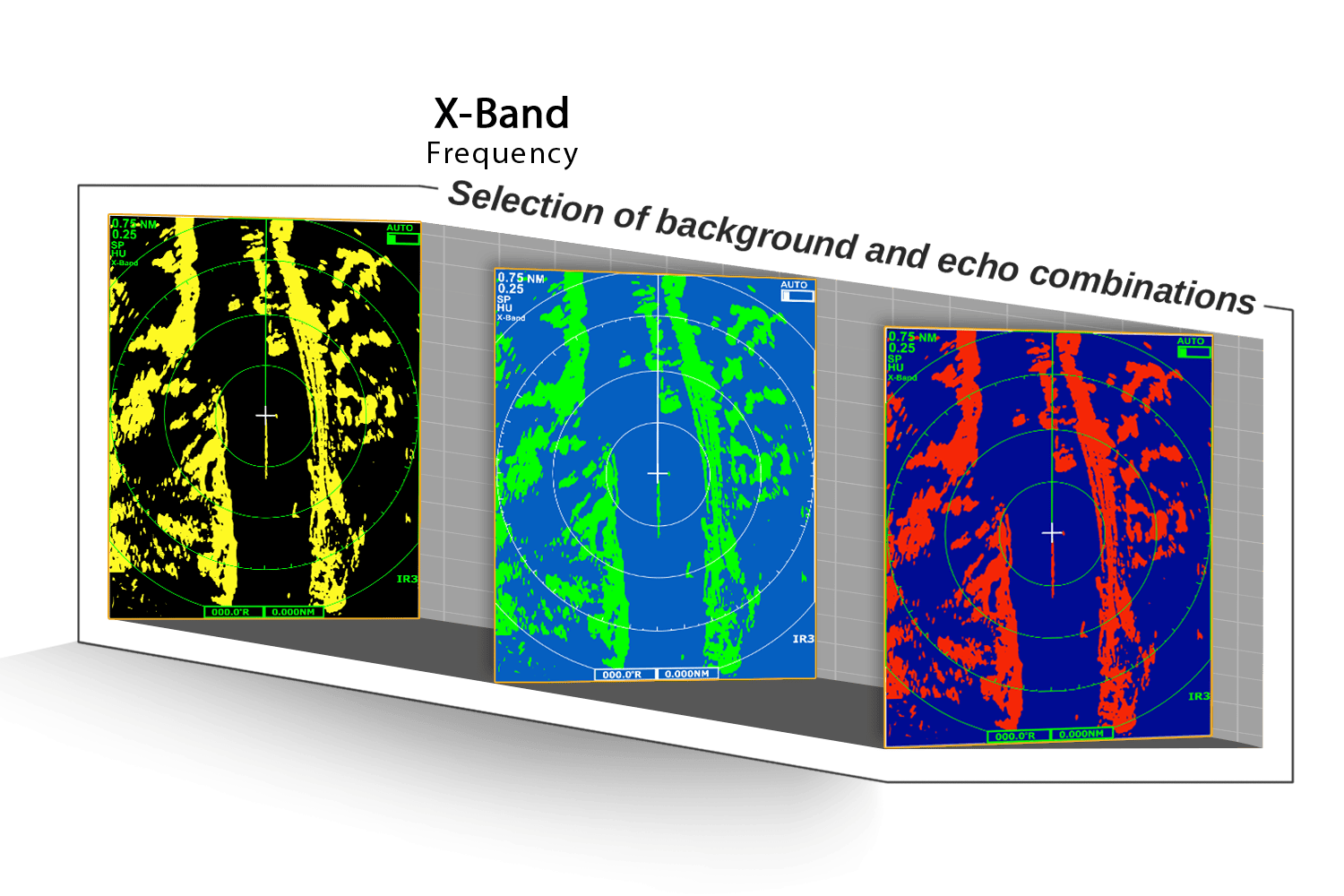

Advanced Features
-
Gain Control: Built in Sea and Rain clutter algorithm for the best possible image in varying conditions.
-
Dual Range Scanning: Simultaneously monitor short and long-range targets, providing a comprehensive view of your surroundings.
-
Weather Overlay: Integrates weather data directly onto the radar display, helping you anticipate and navigate through adverse weather conditions.
-
ARPA Target Tracking: Utilize Automatic Radar Plotting Aid (ARPA) to track up to 40 targets, offering detailed information on their speed, course, and closest point of approach (CPA).

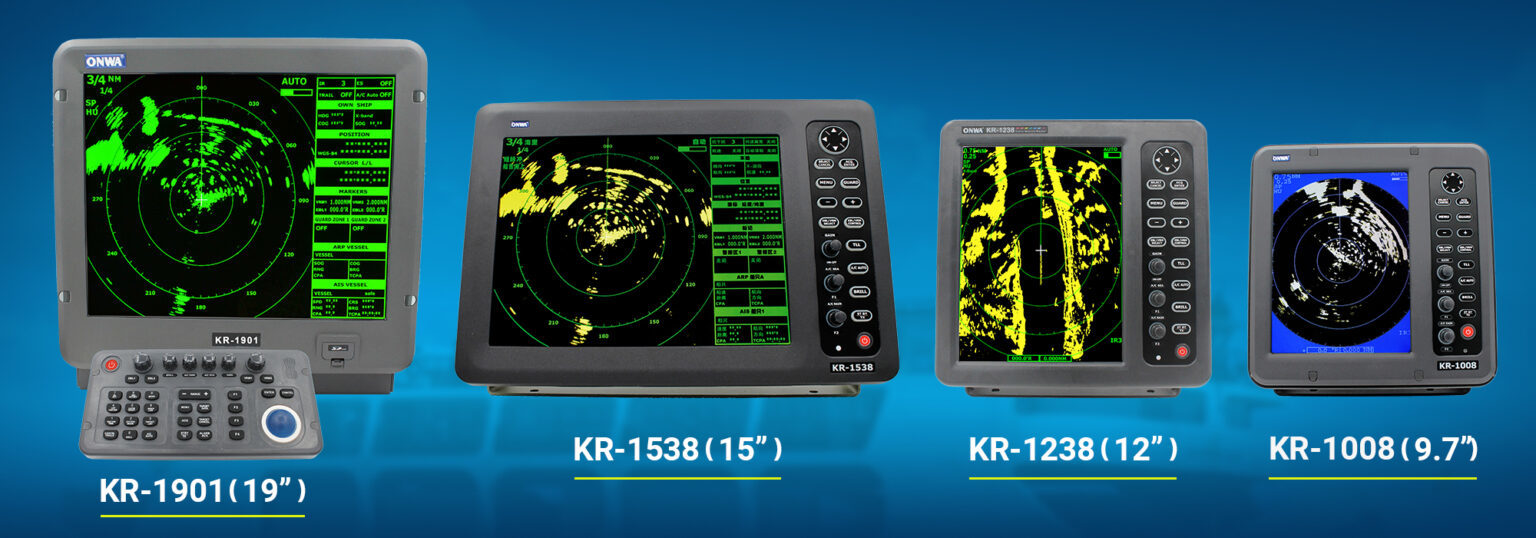

OPTIONAL RADAR DISPLAY
-
-
KRA-1007_N KRA-1009_N Antenna Radiator
Radiator
Slotted waveguide Array
Slotted waveguide Array
Radiator Length
55 cm
46 cm
Antenna Rotation Speed
24 RPM (±2)
Long Range (3~36nm): 24 RPM (±2)
Medium Range (1.5~ 3 nm): 36 RPM (±2)
Short Range (0.125~1.5 nm): 48 RPM (±2)Wind Resistance
Relative wind speed 100 knots(51.5 m/s)
Relative wind speed 100 knots(51.5 m/s)
Beam Width
Horizontal 4°
Vertical 25°Horizontal 5°
Vertical 25°Sidelobe
Within ± 20° off mainlobe; less than -18 dB
Outside ± 20° off mainlobe; less than -23 dBWithin ± 20° off mainlobe; less than -18 dB
Outside ± 20° off mainlobe; less than -23 dBPolarization
Horizontal
Horizontal
Transceiver Module (contained in Radome)
Transmitting Tube
MSF1421B or MAF1421B
MSF1421B or MAF1421B
Frequency
9410 ± 30MHz (X-band)
9410 ± 30MHz (X-band)
Pulse Length PPR
0.08 µ S/2100 Hz(0.125, 0.25, 0.5, 0.75, 1.5 nm)
0.3µ S/1200 Hz(1.5, 2, 3 nm)
0.8 µ S/600 Hz(3, 4, 6, 8, 12, 16, 24, 36nm)0.08 µ S/2100 Hz(0.125, 0.25, 0.5, 0.75, 1.5 nm)
0.3µ S/1200 Hz(1.5, 2, 3 nm)
0.8 µ S/600 Hz(3, 4, 6, 8, 12, 16, 24, 36nm)Warm Up time
1:30 minutes
1:30 minutes
Peak Output Power
4 kW nominal
4 kW nominal
Modulator
FET Switching Method
FET Switching Method
IF
60MHz
60MHz
Tuning
Automatic or Manual
Automatic or Manual
Receiver front end
MIC (Microwave IC)
MIC (Microwave IC)
Bandwidth
Tx pulselength 0.3 µ S and 0.08 µ S: 25 MHz
Tx pulselength 0.8 µ S: 3 MHzTx pulselength 0.3 µ S and 0.08 µ S: 25 MHz
Tx pulselength 0.8 µ S: 3 MHzDuplexer
Circulator with Diode Limiter
Circulator with Diode Limiter
WIFI Module (For KRA-1007W ONLY)
Standard: IEEE802.11n, IEEE802.11g, IEEE802.11b
Channels: 1~11
Frequency Range: 2.4-2.4835G
Transmit Power:15-20dBmEnvironment
Temperature
Antenna unit: -25 to +70°C
Antenna unit: -25 to +70°C
Humidity
Relative humidity 93% or less at 40°C
Relative humidity 93% or less at 40°C
Power Supply
10.5VDC to 40.0 VDC Built-in Power-Supply
10.5VDC to 40.0 VDC Built-in Power-Supply
Compatible Devices
KA-GC9A (NEW) Electronic Compass Heading Sensor
9-Axis Electronic Compass Heading Sensor with built-in High-accuracy GPS Module
