KA-GC9A (NEW) Electronic Compass Heading Sensor
- Product Description
- Specification
- In the Box
- Manuals & Firmware
- Compare All Models
-
KEY FEATURES
- Low power consumption, 450mW
- Power supply : 5V-32V, reverse polarity protected
- Embedded firmware upgrade through proprietary NMEA messages
- Runtime user calibration
- 9 axis inertial measurement unit (IMU) magnetometers, accelerometers & gyroscopes datafusing with proprietary algorithm
- Windows graphical user interface (9 axis E-Compass Manager) for easy setup, monitoring and upgrades
When you turn over the KA-GC9A you can see an arrow sign on the antennabase. Please make sure this arrow should point exactly to the BOW direction.
Example: Connect KA-GC9A to ONWA KP-27X
-
INTERFACE (NMEA0183 VER 2.0)
Baudrate
4800/9600/19200/38400 Selectable
Output Sentences
GPRMC, GPGSA, GPGLL, GPZDA, GPVTG, GPHDT(5Hz)
NOTE: all output sentences are in intervals of 1 Hz unless specifiedElectrical
RS422, 18KV ESD
Power Supply
5V-32V, Over-voltage and reverse polarity protected
Power consumption: 450mWUser-Interface
Uses 9-Axis E-compass Manager
IMU(Inertial Measurement Unit)
9-Axis(Features a GPS/Glonass receiver coupled with a 9-axis AHRS unit providing 3D orientation by integrating gyroscopes and data fusing with accelerometers and magnetometers)
Equipment List

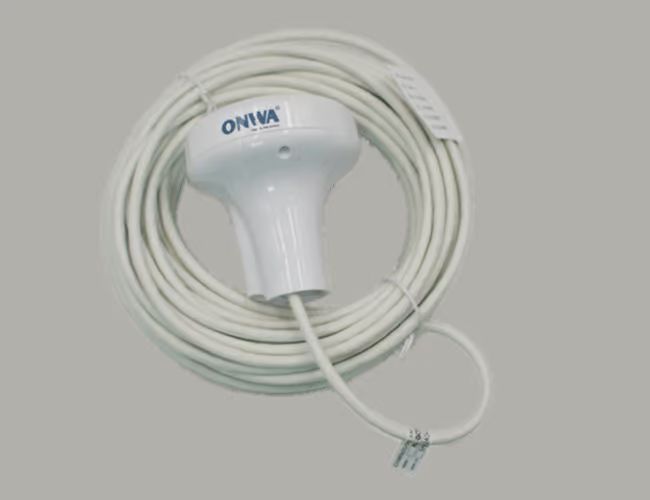

KA-GC9A with 10m cable 1set
-
Main unit

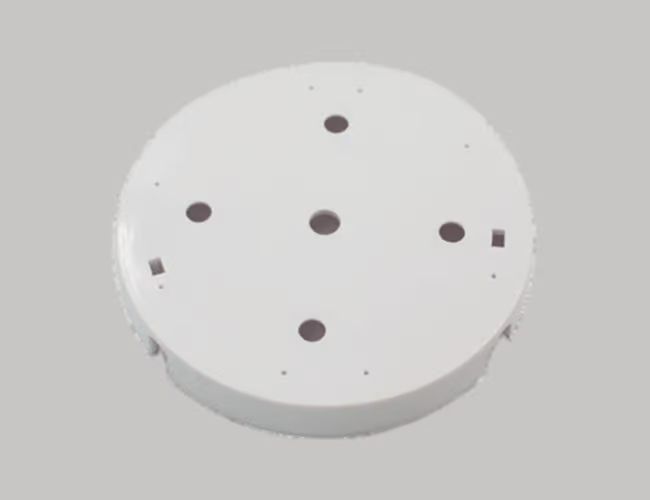

one flat base
Four long screws (TA5-20)
two short screws (ST4-6)
two screw buckles
one wire thread buckle
one Sealing plug
Compatible Devices
K-Astral Easy-to-use MFD Chartplotter
8″ and 12″ Full-featured MFD Chartplotter with Sensitive & Water-resistant Touchscreen and Traditional Keypad
KP-1299 Series Chartplotters
12-inch chartplotters with build-in radar function and optional AIS and Fishfinder functions.
KP-38/39 5/7-inch Chartplotters
Choose Onwa's 5/7-inch Chartplotters for advanced features and confident GPS navigation.
ONWA KM-8/12 Series Marine Chartplotter
8 and 12- inch Multi-function chartplotters with Radar Display
