MULTIPLE DISPLAY MODES WITH PITCH AND ROLL INDICATION
PROVIDES GPS AND HEADING INFO
o Output of GPS and heading signal can beinterfaced with other equipment onboard
o Waterproof and robust heading sensor suitable for outdoor marine condition
STAND ACCESSORIES
- KA-GC9A Heading Sensor
- Standard installation materials

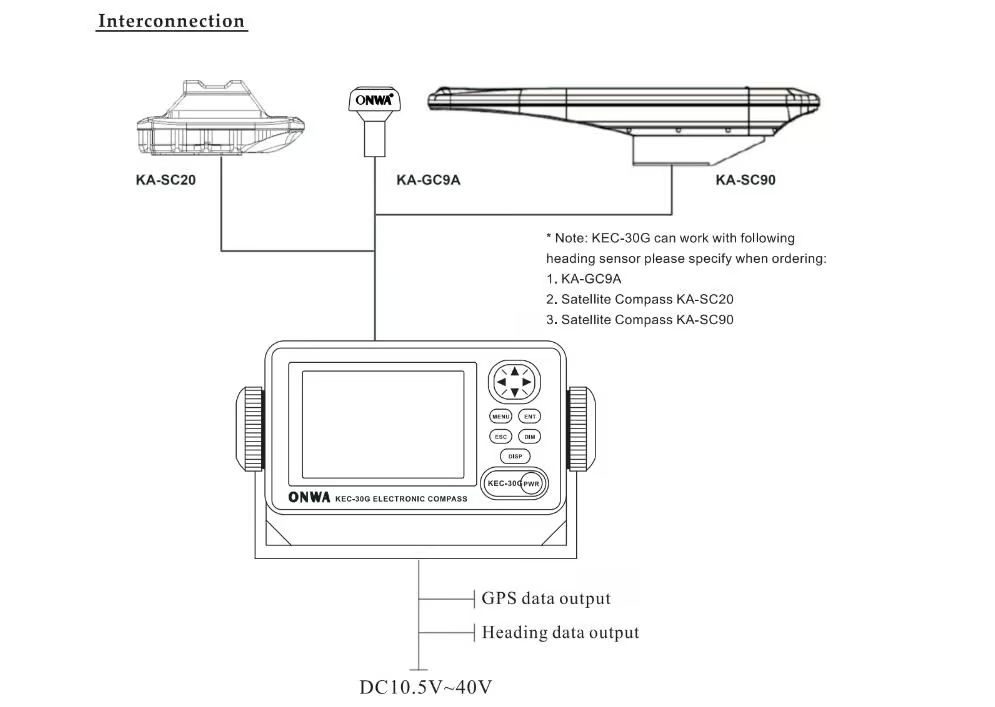

- Heading Sensor option (specify when ordering)
-
General
HEADING Sensor
KA-GC9A
KA-SC20
KA-SC90OUTPOT/INPUT(IEC61162-1)
INPUT
2 x NMEA0183
a) Input sentences : GGA, GLL, GMS, GNS, GSA, GSV, RMC, VTG, HDT
b) Baudrate : auto scan up to 38400
c) Support heading/GPS sensor : KA-GC9A, KA-SC20 and KA-SC90OUTPUT
2 x NMEA0183
Port 1 and Port 2(RS232) :
a) Output sentences : HDT, HDM and HDG (selectable) and RMC, GSA, GGA, VTG, ZDA (Fixed)
b) Heading Output interval selections : 25ms, 100ms, 200ms (default) and 1,000ms
c) Output baudrate selections : 4800 (default), 9600, 19200 and 38400 (selectable)Environmental Conditions
Ambient Temperature
Display unit : -15 °C to +55 °C
Heading/GPS sensor unit : -25 °C to +70 °C (for KA-GC05 and KA-GC9A)Humidity
93% ±3% on 40 °C
Waterproofing
Display unit : IPX5
Heading/GPS sensor unit : IPX7 (for KA-GC05 and KA-GC9A)Power Supply
ELECTRICAL
10.5 – 40VDC
Protection
over-current, over-voltage, power transient and accidental reverse polarity protection
Compatible Devices
undefined
