HIGH ACCURACY SENSOR
Measures wind speed and direction, humidlty, temperature, pressure
LOW MAINTENANCE
No moving parts, does not need constant maintenance and does not require calibration
EXTERNAL DATA OUTPUT
-
Navigational Data of the KW-360 can be shown when interfaced using RS232 or RS485 connector with ONWA Chart Plotters. Data such as temperature, wind speed and direction, etc.,can be seen in the plotter when interfaced with KW-360
-
Support Modbus protocol for industry use
-
Support MDA sentence-Meteorological Composite (Obsolete)
MONITOR WEATHER CONDITIONS BY CONNECTING TO COMPUTER
-
Recording and Playback of air temperature and air pressure data
-
Displays the history of air temperature and air pressure in order to predictthe weather change
-
Display wind information (True and Relative)
-
Able to connect heading and Lon/Lat Input
-
Alarms when change in Wind, Temperature and Air pressure is violated(depending on user settings)
-
Display Tidal data and Celestial

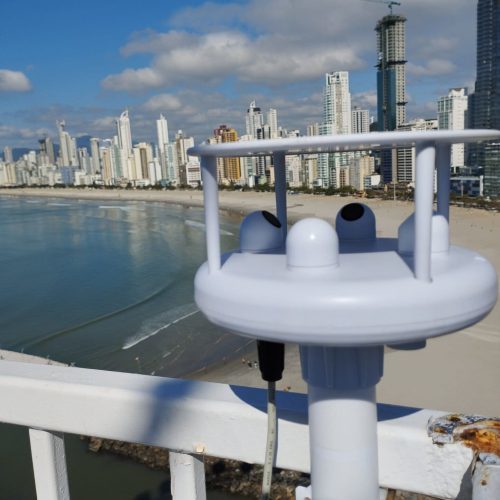

ALSO BE USED IN LAND APPLICATIONS
-
-
Wind Speed
Range
0~40m/s
Precision
±2% (at 12m/s)
Resolution
0.01 m/s
Measurement Unit
m/s
Wind
Range
0~359.9°
Resolution
0.1°
Temperature
Temperature Measurement Range
-20°C~+75°C
Temperature Measurement Accuracy
±0.5°C (at 12m/s)
Temperature Resolution
0.1°C
Measurement Unit
°C
Humidity
Humidity Measurement Range
10%~99.9%
Humidity Measurement Accuracy
±2%RH (25°C)
Humidity Resolution
0.1%RH
Pressure
Measurement Unit
Pa
Measurement Range
30000~ 110000 Pa
Altitude
Measurement Unit
m
Measurement Range
+9000m~ 0m
Communication Format
Hardware Interface
RS232, RS485
Baud Rate
4800, 9600, 19200, 38400
Working Environment
Waterproof Grade
IP65
Working Temperature–
20°C~ +75°C
Storage Temperature
-30°C~ +80°C
Working Humidity
<5%~100%
Electromagnetic Compatibility
IEC60945
Mechanical Properties
Size/Weight
165x165x140 (LxWxH)mm <1 kg
Compatible Devices
K-Astral Easy-to-use MFD Chartplotter
8″ and 12″ Full-featured MFD Chartplotter with Sensitive & Water-resistant Touchscreen and Traditional Keypad
KP-38/39 5/7-inch Chartplotters
Choose Onwa's 5/7-inch Chartplotters for advanced features and confident GPS navigation.
ONWA KM-8/12 Series Marine Chartplotter
8 and 12- inch Multi-function chartplotters with Radar Display
KP-1299 Series Chartplotters
12-inch chartplotters with build-in radar function and optional AIS and Fishfinder functions.
ONWA KP-25/27 Series Marine Chartplotters
5 and 7- inch chartplotters with optional built-in Class B+AIS and fishfinder function
